1060 Aluminium ntawv

Alloy 1060 muaj qhov tsawg kawg nkaus txhuas cov ntsiab lus ntawm 99.6 feem pua thiab yog tsim los ntawm cov ntshiab txhuas nrog ib tug me me ntawm tooj liab ntxiv los muab cov zoo heev forming zog, siab corrosion kuj, zoo weldability thiab hluav taws xob conductivity.

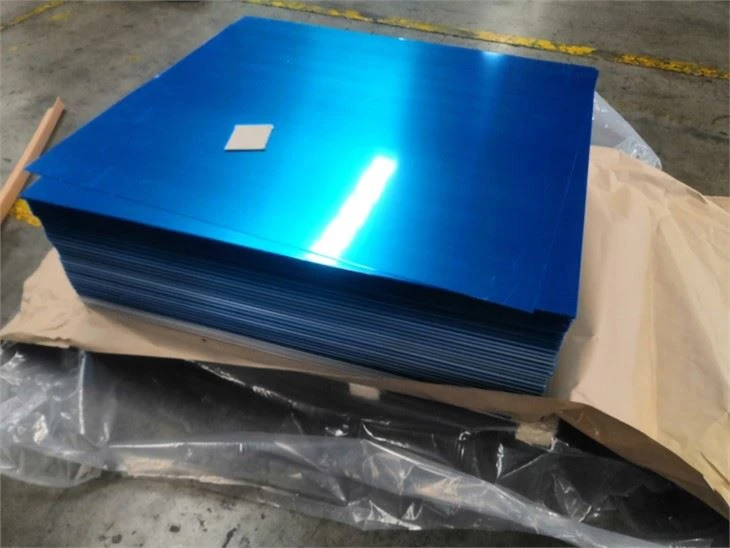

1060 aluminum sheet 1 2

1060 txhuas ntawv, zoo li 1050 txhuas ntawv, yog dav siv nyob rau hauv cov khoom uas tsis tshua muaj zog yuav tsum tau, xws li tshuaj lom neeg cov cuab yeej, daim ntawv hlau ua qhov chaw, sib sib zog nqus nqus los yog spinning concave ntim, vuam qhov chaw, tshav kub exchangers, moos thiab disk nto, nameplates, chav ua noj, Decorations, reflectors, thiab lwm yam.

Cov khoom siv ntawm aluminium ntawv 1060 alloy

Qhov kawg tensile lub zog ntawm σb yog siab tshaj 75 MPa, thiab lub zog yield zog siab tshaj 35 MPa.

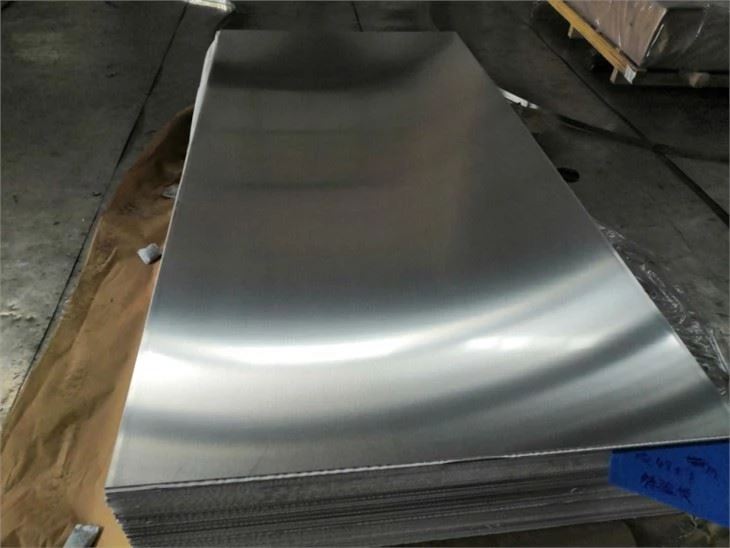

1060 aluminum sheet 2mm

Kev kho cua sov txheej txheem ntawm 1060 txhuas ntawv

Kev nrawm nrawm: cua kub yog 350 ~ 410 degrees Celsius; nrog rau cov thickness zoo ntawm cov khoom, lub sij hawm tuav yog nyob nruab nrab ntawm 30-120min; txias hauv huab cua lossis dej.

Kub kub annealing: Cov cua kub kub yog 350 ~ 500 degree; Yog hais tias lub thickness ntawm cov khoom tiav tsis tsawg tshaj li 6 hli, lub sij hawm tuav yog 10 ~ 30min. Yog tias lub thickness tsawg dua 6 hli, cua sov kom txog thaum tag nrho cov phaj kub thiab txias hauv huab cua.

Tsawg kub annealing: cua kub kub yog 150 ~ 250 degrees Celsius; Lub sijhawm tuav yog 2 ~ 3H; txias hauv huab cua lossis dej.

1060 aluminum sheet cost

Cov hlau muaj pes tsawg leeg ntawm 1060 aluminium phaj

Al (%)	Si (%)	Cu (%)	mg (%)	Zn (%)	Mn (%)	Ti (%)	V (%)	Fe (%)
99.60	0.25	0.05	0.03	0.05	0.03	0.03	0.05	0.350

aluminium 1060 nplooj ntawv Alloy Performance Parameter

Alloy kub	Hardness	Qhov ntom	Yield zog	Tensile zog
1060	/	2.68	σ0.2 (MPa) Ntau dua lossis sib npaug rau 35	σb (MPa) Ntau dua lossis sib npaug rau 75

6061 T6 txhuas phaj VS 1060 txhuas phaj

Tshuaj muaj pes tsawg leeg

1060 txhuas ntawv yog rau cov ntshiab txhuas daim hlau nrog txhuas cov ntsiab lus ncav cuag ntau tshaj 99.6 feem pua. Nws muaj nruab nrab hardness thiab tus nqi qis. 6061 t6 txhuas phaj belongs rau Al-Mg-Si alloy, uas muaj qee yam muaj pes tsawg leeg ntawm silicon thiab magnesium. Nws muaj qee qhov kev hnav tsis kam thiab xeb kuj. Nws lub zog yog ntau dua 1060 txhuas ntawv.

Hardness

Lub hardness ntawm 1060 yog nruab nrab, uas tuaj yeem hloov mus rau cov txheej txheem ua haujlwm, xws li khoov, thaum lub hardness ntawm 6061 yog qhov zoo dua, uas yog dav siv nyob rau hauv cov chaw uas yuav tsum tau hardness siab. Cov txhuas phaj tuab ntawm 6061 alloy yog 6-100 hli.

Nyob rau tib lub sijhawm, 6061 txhuas daim hlau tuaj yeem kho cua sov. 6061-T6 aluminium ntawv yog qhov kub thiab txias, uas yog tsim rau pwm thiab tshuab tsim kev lag luam.

Daim ntawv thov Scope

1060 txhuas yog cov khoom siv tseem ceeb rau kev tsim cov transformer winding, uas ncaj qha cuam tshuam rau qhov zoo ntawm transformer. Nws kuj yog siv los ua lub hauv paus phaj ntawm zoo PS phaj, thermal CTP phaj, photosensitive CTP daim hlau, UV-CTP daim hlau, thiab lwm yam.

al 1060 daim ntawv tseem yog lub ntsiab txhuas lub raj mis cov khoom siv rau cawv, tshuaj pleev ib ce, lub raj mis kho mob, dej haus, thiab lwm yam. Muaj cov kev xav tau siab rau kev ua cov ntaub ntawv lub raj mis, xws li cov duab tiaj tus thiab zoo heev sib sib zog nqus stamping kev ua tau zoo.

6061 t6 txhuas ntawv nrog lub zog nruab nrab, qee qhov kev tiv thaiv corrosion thiab zoo hnav tsis kam yog dav siv hauv kev lag luam sib txawv xws li nkoj lawj, tsheb kauj vab, pwm, tsheb log, manhole npog, thiab lwm yam. Zoo siab txais tos tawm cov lus hauv qab no kom nug seb koj xav tau dab tsi.
