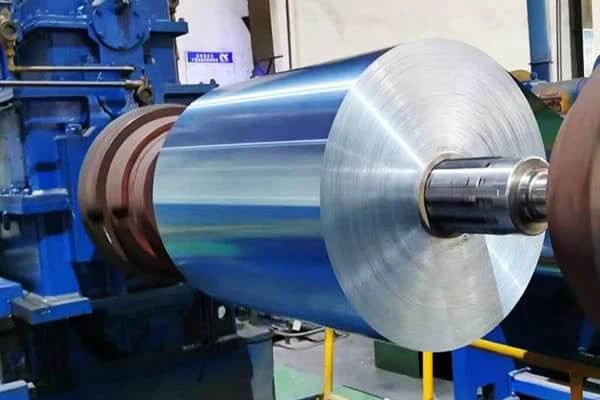

3003 Hydrophilic Coated Aluminium Ntawv Nyiaj Rau HVAC Fins

1. Taw qhia

Lub tshuab cua sov niaj hnub / cua txias (HPAC) kev lag luam xav tau kev ua haujlwm siab thiab kev ntseeg siab.

Raws li cov qauv hluav taws xob thoob ntiaj teb dhau los ua nruj dua thiab cov neeg siv khoom xav tau kev nplij siab ntau dua, txhua feem ntawm HVAC cov tshuab tau raug kev nyuaj siab kom ua tau zoo.

Ntawm tag nrho cov khoom, lub unpretentious aluminium fin - lub nyias nruj nreem ntim hlau phaj uas pab cua thiab refrigerant pauv cua sov - muaj ib tug outsized nyhuv rau tag nrho cov system efficiency.

3003 hydrophilic coated aluminium ntawv ci rau HVAC fins yog cov khoom pov thawj rau cov khoom siv hluav taws xob xws li evaporators thiab condensers.

Cov khoom tshwj xeeb no muaj lub zog txhua yam ntawm 3003 aluminium alloy thiab kev kho saum npoo ntawm cov txheej txheej txheej txheem uas hloov pauv txoj kev fin los ntawm kev sib cuag nrog cov kua.

Qhov no ua rau cov ntaub ntawv teb rau ib qho ntawm cov teeb meem nyob rau hauv HVAC kev khiav hauj lwm: condensate tuav.

2. Dab tsi yog 3003 Hydrophilic Coated Aluminium Foil?

3003 hydrophilic coated aluminium ntawv ci - cov khoom siv ua haujlwm siab nrog 3003 aluminium alloy substrate thiab txheej txheej los txhawb dej sib kis.

Cov khoom tshwj xeeb no yog tsim los ua cov khoom siv hluav taws xob sib hloov rau cov khoom siv hauv cov fins stacked thiab active ya raws tswj pads thiab sib txuas cov txheej txheem kub hloov chaw nrog kev tswj cov dej noo.

2.1 Base Khoom: 3003 Aluminium Ntawv Nyiaj

Kev sib xyaw

3003 txhuas belongs rau manganese (Mn) alloyed 3xxx series, paub txog nws zoo heev formability nrog rau nruab nrab lub zog.

Cov tshuaj muaj pes tsawg leeg ntawm 3003 alloy yog precisely tswj kom ua tiav cov yam ntxwv kev ua tau zoo:

Cov ntsiab lus manganese yog qhov tseem ceeb sib txawv ntawm cov ntshiab txhuas (1xxx series).

Manganese atoms yaj nyob rau hauv aluminium matrix, tsim cov lattice distortions uas impede dislocation zog-ib tug mechanism hu ua solid- kev daws teeb meem.

Qhov no ua rau 3003 ua tiav kwv yees li30% siab zog dua li ntshiab txhuasthaum tuav zoo heev ductility.

Thickness

Rau HVAC fin daim ntaub ntawv, 3003 ntawv ci yog feem ntau tsim nyob rau hauv thicknesses xws li0.08mm txog 0.20mm. Qhov tshwj xeeb gauge xaiv nyob ntawm tus qauv tsim fin:

0.08-0.10 hli: Feem ntau rau cov cua txias hauv tsev evaporators qhov hnyav thiab cov khoom siv yog qhov tseem ceeb

0.10-0.15 hli: Txheem ntau yam rau feem ntau daim ntawv thov HVAC ntsuas lub zog thiab kev tsim kho

0.15-0.20 hli: Siv nyob rau hauv condensers los yog industrial daim ntaub ntawv yuav tsum tau txhim khu kev ruaj ntseg

Txog li 0.30 mm: Muaj rau tshwj xeeb hnyav- lub luag haujlwm kub hloov pauv

Thickness kam rau ua yog ib qho tseem ceeb rau kev ua haujlwm siab - ceev stamping, nrog rau cov neeg muag khoom hwm tswj kev ua siab ntev ntawm± 0.005 hlilos xyuas kom meej tus cwj pwm zoo sib xws.

Kub

Cov tempers feem ntau rau 3003 txhuas ntawv ci siv hauv fin Tshuag suav nrog H22, H24, thiab H14.

Cov tempers no sawv cev rau ntau qib ntawm strain hardening thiab ib nrab annealing, muab qhov zoo sib npaug ntawm lub zog rau kev tsim cov txheej txheem (xws li, stamping, yob txoj kev) thiab ductility rau fin tsim yam tsis muaj cracking.

Physical thiab Mechanical Properties

3003 txhuas nthuav tawm cov khoom sib txawv uas ua rau nws zoo tagnrho rau kev siv hluav taws xob sib hloov:

Kev tshawb fawb ntawm txhuas-manganese alloys tau pom tias kev kho kom zoo annealing tuaj yeem ua tiav cov txiaj ntsig thermal conductivity siab li215 W/(m·K)nrog elongation ncav cuag28%, sawv cev rau kev sib xyaw ua ke zoo tshaj plaws rau kev siv fin.

2.2 Hydrophilic Txheej: Nto Engineering Cov Cai

Cov txheej txheej hydrophilic yog qhov tseem ceeb ntawm kev tsim kho tshiab uas hloov pauv kev ua haujlwm ntawm 3003 txhuas ntawv ci hauv HVAC daim ntawv thov.

Science ntawm Hydrophilicity:Hydrophilicity (lus "dej{0}}hlub") yog hais txog cov khoom siv rau dej. Ntawm qhov chaw hydrophilic tiag tiag, dej nthuav tawm los ua ib zaj duab xis nyias, tsis tu ncua es tsis txhob hla mus rau hauv cov dej sib cais. Tus cwj pwm no yog ntsuas los ntawm tuscontact lub kaum sab xis, uas yog lub kaum sab xis ib cov kua tee ua nrog cov khoom nto. Lub kaum sab xis ntawm qis dua 90℃qhia txog hydrophilicity, nrog rau qhov chaw hydrophilic heev feem ntau nthuav tawm cov ces kaum sib cuag hauv qab 30 degree, thiab qhov zoo tshaj plaws mus txog 0-10 degree. Cov txheej ua tiav qhov no los ntawm kev hloov pauv lub zog saum npoo ntawm txhuas, ua rau nws muaj zog txaus rau dej kom sib kis.

Vim li cas Hydrophilic Txheej yog qhov tseem ceeb rau HVAC Fins:

Kev Tiv Thaiv Kev Tiv Thaiv Dej:Nyob rau hauv ib puag ncig humid, condensation cov ntaub ntawv ntawm txias evaporator fins. Ntawm liab qab aluminium, dej nyhav tsim cov tee dej uas tuaj yeem txuas qhov sib txawv ntawm cov fins. Qhov no "dej bridging" obstructs airflow, tsub kom airside siab poob, thiab ho txo ​​tshav kub efficiency.

Kev tiv thaiv corrosion:Cov dej tsis zoo, tshwj xeeb tshaj yog cov uas muaj cov kab mob sib kis, tuaj yeem ua kom cov kab mob hauv zos (piv txwv li, pitting) ntawm txhuas qhov chaw.

Kev loj hlob microbial:Cov dej noo noo muab cov av zoo tshaj plaws rau cov pwm, kab mob, thiab lwm yam kab mob, ua rau muaj ntxhiab tsw thiab muaj peev xwm noj qab haus huv (xws li "sick building syndrome").

Txheej Physical Yam ntxwv:

Thickness:Cov txheej txheej hydrophilic yog nyias nyias, feem ntau yog los ntawm1-5 micrometers (µm). Qhov tsawg kawg nkaus tuab no ua kom nws tsis cuam tshuam cov cua sov hloov mus los ntawm txhuas nws tus kheej, thiab nws tsis hloov pauv tag nrho qhov ntev ntawm tus fin.

Qhov tsos:Feem ntau muaj xiav lossis ntsuab tint rau kev pom kev sib txawv, txawm hais tias cov xim ntshiab kuj muaj.

Adhesion:Kev ua tau zoo heev rau aluminium substrate yog qhov tseem ceeb los tiv thaiv delamination thaum lub sijhawm tsim khoom thiab thoob plaws lub neej ua haujlwm ntawm HVAC chav tsev.

3. Vim li cas 3003 Hydrophilic Coated Aluminium Ntawv Nyiaj rau HVAC Fins?

Qhov no 3003 txhuas ntawv nyiaj nrog hydrophilic txheej yog zoo meej ua ke rau niaj hnub HVAC Systems.

3.1 Zoo heev Hydrophilicity thiab Moisture Management

Lub ntsiab kom zoo dua yog nws lub peev xwm txawv tshaj plaw rau kev tswj condensate. Condensed dej yog uniformly faib nyob rau saum npoo ntawm fin, thiab ib tug nyias zaj duab xis tsim los ntawm condensed dej zoo ntws tawm.

Qhov no kuj txwv kev tsim cov tee dej thiab cov txuas hniav uas yog qhov zoo los ua kom pom kev zoo ntawm huab cua thiab cua sov.

Hauv Kev Ntsuas Kev Ua Tau Zoo Hauv Kev Ua Haujlwm Siab, qhov siab zoo li qub poob thoob plaws lub kauj yog feem ntau txo los ntawm 10-20% thaum piv nrog cov fins tsis muaj coated.

3.2 Txhim kho Thaum tshav kub kub Exchange Efficiency

Vim yog kev tiv thaiv ntawm kev sib txuas ntawm cov dej thiab los ntawm kev khaws cov yeeb yaj kiab dej nyias, cov txheej hydrophilic txo cov thermal kuj tshwm sim los ntawm condensate.

Qhov no yuav tsum ua kom muaj txiaj ntsig zoo ntawm kev hloov pauv ntawm huab cua thiab tub yees.

Cov txiaj ntsig ntawm kev sim qhia tau hais tias HVAC cov tshuab nrog cov dej hydrophilic tuaj yeem ua tiav qhov kev txhim kho ntawm 5% mus rau 15% hauv Coefficient of Performance (COP) lossis Energy Efficiency Ratio (EER) nyob rau hauv cov xwm txheej ntawm kev ua haujlwm zoo, ua rau muaj zog loj -txuag peev xwm.

3.3 Zoo corrosion kuj

Cov txheej txheej hydrophilic muab ib txheej ntawm kev tiv thaiv rau 3003 aluminium alloy los ntawm cov teeb meem ib puag ncig thaum ua haujlwm.

Qhov no yog degradation tshwm sim los ntawm raug rau acidic nag, los yog industrial pollutants, los yog ntsev, thiab qhov no yog tshwj xeeb tshaj yog hnyav nyob rau hauv lub hiav txwv ntug dej hiav txwv los yog huab cua muaj kuab paug.

Corrosion accelerated tests xws li ntsev tsuag tshuaj ntsuam (xws li ASTM B117) ib txwm qhia tau hais tias hydrophilic coated fins muaj peev xwm tuav tau txog li 2-3 zaug raug ntau dua ua ntej degradation tseem ceeb nyob rau hauv kev sib piv nrog liab qab txhuas.

Qhov no txuas ntxiv lub neej ntawm lub tshav kub exchanger thiab tag nrho HVAC chav tsev.

3.4 Zoo kawg nkaus formability thiab processability.

Txawm hais tias txheej yog nyias,Hydrophilic coated Aluminium Ntawv Nyiajtseem muaj superior formability ntawm cov khoom siv substrate.

Cov ntawv ci tuaj yeem raug stamped thiab dov rau hauv cov fin geometry uas tsis muaj qhov tawg lossis tev ntawm txheej.

Qhov no ua rau muaj kev tsim tawm siab thiab cia cov khoom siv hluav taws xob sib hloov- cov neeg tsim khoom tsim cov qauv zoo sib xws kom ua kom cov cua sov hloov mus.

3.5 Pwm thiab ntxhiab tsis kam

Lub hydrophilic nto tseem tiv thaiv kev tsim cov dej ntawm cov fins thiab tso cai rau cov dej ntws sai sai, txo cov fin moisturing thiab inhibiting kev loj hlob ntawm pwm, mildew, kab mob thiab lwm yam microbial.

Qhov no muaj kev cuam tshuam ncaj qha rau kev tsim kom muaj qhov zoo dua Sab Hauv Tsev Cua Zoo (IAQ) los ntawm kev tshem tawm cov tshuaj tsis haum, cov kab mob, thiab cov ntxhiab tsw 'musty' uas HVAC paub txog.

Qee cov khaubncaws sab nraud povtseg tuaj yeem suav nrog cov tshuaj tua kab mob me me rau kev tiv thaiv ntxiv.

3.6 Cov txiaj ntsig txo suab nrov

Raws li cov tee dej tso rau ntawm cov fins liab qab, cov huab cua txav ntawm lawv tuaj yeem tsim lub suab "popping" lossis "hissing".

Hydrophilic fins tso cai rau cov dej ntws ywj pheej thiab tsis tu ncua, thiab ua li ntawd lawv kuj tiv thaiv qhov chaw ntawm rattling lossis vibrating suab nrov hauv koj chav HVAC, yog ib qho ntxiv rau cov tswv tsev thiab cov neeg ua haujlwm!

3.7 Aesthetic thiab Brand Differentiation

Cov xim raug (feem ntau yog xiav lossis ntsuab) ntawm hydrophilic coated fin's qhia ib zaj dab neeg ntawm kev siv tshuab siab heev thiab zoo.

Qhov no tuaj yeem yog ib qho kev sib txawv ntawm ib hom khoom rau HVAC cov tuam txhab, sib txuas lus ua kom pom tseeb ntawm kev ua tau zoo thiab kev ntseeg siab kom kawg - cov neeg siv.

4. Kev tsim cov txheej txheem ntawm 3003 Hydrophilic Coated Aluminium Ntawv Nyiaj

Kev tsim tawm ntawm 3003 hydrophilic coated aluminium ntawv ci yog ntau- kauj ruam, precision{2}} tswj txheej txheem.

4.1 Raw Material Preparation

High-zoo 3003 aluminium alloy ingots raug cam khwb cia thiab ces kub- dov rau hauv cov ntawv tuab.

Cov nplooj ntawv no tau txias tom qab- dov los ntawm cov chaw sawv ntsug kom ua tiav qhov xav tau nyias qhov ntsuas ntawm cov ntawv ci txhuas. Kev tswj nruj thiab qhov zoo ntawm qhov chaw yog qhov tseem ceeb nyob rau theem no.

4.2 Ntxuav thiab ua ntej-Kev kho mob

Ua ntej txheej, cov ntawv txhuas txhuas tau ua kom huv si kom tshem tawm cov roj rolling, oxides, lossis cov kab mob ntawm qhov chaw. Qhov no feem ntau muaj xws li:

Degreasing:Alkaline los yog acidic daws tshem tawm cov organic residues.

Yaug:Ntau theem ntawm deionized dej yaug kom ntseeg tau tias tsis muaj tshuaj lom neeg nyob.

Etching (yeem):Ib qho me me etch tuaj yeem tsim ib qho me ntsis rougher nto rau zoo txheej adhesion.

Conversion Txheej:Ib txheej nyias nyias hloov dua siab tshiab (piv txwv li, chrome-dawb lossis chromate-raws li) feem ntau siv. Cov txheej no txhawb kev txhim kho corrosion thiab ua raws li kev txhawb nqa rau cov txheej txheem hydrophilic tom ntej.

4.3 Daim ntawv thov ntawm Hydrophilic Txheej

Cov ntawv ua ntej -kho aluminium foil yog ces muab tso rau hauv ib txheej txheej uas siv cov tshuaj hydrophilic. Cov txheej txheem kev thov feem ntau suav nrog:

Roll Txheej:Ib tug meej npaum li cas ntawm cov txheej txheem yog kis los ntawm lub lauj kaub mus rau ib tug roller, uas ces siv nws tusyees mus rau lub tsiv ntawv ci. Txoj kev no ua kom cov tuab tuab.

Curtain Txheej:Cov ntawv ci dhau los ntawm qhov txuas ntxiv "txoj kab hlau rhuav" ntawm txheej txheej, kom ntseeg tau tias daim ntawv thov sib npaug thiab zoo ib yam.

4.4 Ci thiab Kho

Tam sim ntawd tom qab txheej, cov ntawv ci dhau los ntawm qhov kub siab - qhov cub kub. Qhov txheej txheem ci no ua haujlwm rau ob lub hom phiaj tseem ceeb:

Evaporation:Tshem tawm cov kuab tshuaj los yog cov nqa dej los ntawm cov txheej txheem.

Kho:Ua rau muaj tshuaj lom neeg nyob rau hauv cov khoom siv txheej txheej, hla -txuas cov polymers lossis solidifying inorganic Cheebtsam los ua ib tug ruaj khov, chemically bonded zaj duab xis nrog rau qhov xav tau hydrophilic zog. Precise kub thiab tswj lub sij hawm nyob hauv tsev yog qhov tseem ceeb rau kev ua haujlwm zoo ntawm txheej txheej.

4.5 Slitting

Thaum kho, cov yob dav ntawm cov ntawv coated yog precision-slit rau hauv cov yob yob raws li cov neeg siv khoom tshwj xeeb, npaj rau kev xa mus rau HVAC fin manufacturers.

4.6 Kev Tswj Xyuas Zoo

Thoob plaws hauv tag nrho cov txheej txheem, cov kev ntsuas nruj nruj tau siv, suav nrog:

Kev ntsuas Thickness:Ntawm cov ntawv ci thiab txheej.

Sib cuag lub kaum sab xis ntsuas:Txhawm rau txheeb xyuas hydrophilicity.

Kev kuaj adhesion:Siv hla -hatch los yog daim kab xev xeem.

Corrosion resistance tests:Piv txwv li, ntsev tsuag tshuaj ntsuam ntawm cov qauv.

Kev kuaj pom pom:Rau qhov tsis xws luag, uniformity, thiab xim.

Mechanical Properties Tests:Txhawm rau kom cov ntawv ci ua tau raws li qhov yuav tsum tau muaj zog thiab formability.

5. Daim ntawv thov ntawm 3003 Hydrophilic Coated Aluminium Ntawv Nyiaj rau HVAC Fins

5.1 Chaw Nyob thiab Kev Lag Luam Cua Txias

Cov ntawv thov loj tshaj plaws rau 3003 hydrophilic coated ntawv yog nyob rau hauv chav cua txias, cais cov tshuab, ntim khoom, thiab cov tshuab cua txias hauv nruab nrab.

Evaporator fins (hauv tsev): Cov kev paub dhau los ntawm kev tsim cov condensate hnyav tshaj plaws, ua rau cov txheej txheem hydrophilic tseem ceeb rau kev tswj cov huab cua thiab kev ua haujlwm. Cov fins ntom ntom yog li ntawm 14 txog 25 fins ib nti (FPI).

Condenser fins (sab nraum zoov units): Thaum cov no ua hauj lwm saum toj no dew point thaum lub sij hawm txias txias, lawv muaj condensate thaum tshav kub twj tso kua mis ua hauj lwm thiab yuav tsum tau tiv thaiv sab nraum zoov ib puag ncig. Corrosion kuj tseem ceeb tshwj xeeb tshaj yog rau chav nyob sab nraum zoov.

Kev txhim kho kev ua haujlwm hauv tsev AC chav nyob nrog cov fins hydrophilic suav nrog:

Txias efficiency txhim kho: mus txog5%

Txo cov kiv cua siv zog

Cov khoom siv txuas ntxiv lub neej los ntawm kev tiv thaiv corrosion

5.2 Cov khoom siv tub yees

Daim ntawv thov tub yees nthuav tawm cov teeb meem tshwj xeeb vim qhov ua haujlwm qis dua thiab nquag defrost mus:

Lub tub yees thiab lub freezer evaporators: Ua haujlwm hauv qab khov, cov fins no yuav tsum tswj cov condensate thiab Frost tsim. Hydrophilic txheej cuam tshuam cov qauv te thiab adhesion, muaj peev xwm txhim kho defrost efficiency.

Commercial display case: Qhib cov tub yees txias muaj cov av noo infiltration, ua rau kev tswj xyuas condensate tseem ceeb rau kev tswj xyuas cov khoom pom thiab cov khoom ua haujlwm.

Taug kev- hauv cov cua txias: Cov evaporator loj coils tau txais txiaj ntsig los ntawm kev khaws cov cua ntws los ntawm qhov chaw hydrophilic.

5.3 Automotive HVAC Systems

Automotive cua txias tshuab ua haujlwm raws li qhov xav tau xws li:

Qhov kub thiab txias variations

Raug rau txoj kev ntsev thiab de- tshuaj icing

Kev vibration thiab mechanical stress

Qhov chaw txwv yuav tsum muaj siab -kev ua tau zoo compact tshav kub exchangers

Hydrophilic coated fins nyob rau hauv automotive evaporators yuav tsum tiv taus cov xwm txheej no thaum tswj kev ua haujlwm.

Qhov yuav tsum tau muaj kev tiv thaiv corrosion yog tshwj xeeb tshaj yog nruj, nrog rau ntsev tsuag kuj feem ntau teev ntawmNtau dua lossis sib npaug li 480 teevlos yog siab dua.

5.4 Muaj Cua Txias Txias Txias

Cov ntawv thov kev lag luam muaj xws li:

Cov txheej txheem cua txias: Ua kom muaj kev hloov pauv hluav taws xob hauv kev lag luam ib puag ncig

HVAC systems rau cov tsev lag luam: Cov cua loj loj nrog thaj chaw coil dav dav

Data center txias: Precision txias cov cuab yeej xav tau kev ntseeg siab tshaj plaws

Thaum tshav kub kub rov qab systems: Qhov twg condensate tswj cuam tshuam rau tag nrho cov system kev ua tau zoo

Rau cov ntawv thov kev lag luam, cov qib txhim kho corrosion kuj zoo li cov uas muaj cov txheej txheem ua ntej -kev kho mob lossis cov qauv tsim tshwj xeeb (xws li, WATERFIN® 700 rau qhov chaw muaj kab mob) yuav raug teev tseg.

5.5 Cov ntawv thov tshiab

Hygroscopic zaj duab xis integration:

Novel le caag muab cov khoom siv hydrophilic nrog hygroscopic cov ntaub ntawv uas nquag nqus dej noo, muaj peev xwm txo cov condensate tsim thiab muab cov cua txias los ntawm evaporative thiab radiative mechanisms.

Kev tshawb fawb qhia tau hais tias xws li kev sib xyaw ua ke tuaj yeem ua tiav8.5℃kub txothiab18% nce nyob rau hauv tshav kub hloov coefficientthaum siv rau cov fins tiag tiag.

Photovoltaic{0}}cov tshuab cua sov:

Kev sib txuas lub hnub ci hluav taws xob tsim hluav taws xob nrog thermal rov ua haujlwm tsim cov ntawv thov rau hydrophilic coated nto uas tswj cov condensate thaum ua kom kub hloov pauv.

Kev sim qhia3.5℃kub txonyob rau hauv PV panels nrog advanced thermal tswj.

Data center txias:

Lub siab - qhov kub ceev loads nyob rau hauv cov neeg rau zaub mov chav xav tau siab tshaj plaws tshav kub exchanger efficiency, ua hydrophilic fins nce tseem ceeb rau kev tswj kev ua tau zoo nyob rau hauv ntau yam load.

6. Sib piv nrog lwm cov ntaub ntawv Fin

Thaum xaiv cov ntaub ntawv fin rau HVAC cov khoom siv hluav taws xob sib hloov, cov tuam ntxhab ntsuas ntau yam nrog rau kev ua haujlwm thermal, nqi, durability, thiab kev ua haujlwm.

Cov lus hauv qab no muab kev sib piv ntawm 3003 hydrophilic coated aluminium foil nrog ntau lwm cov ntaub ntawv.

7. Cov lus xaus

3003 hydrophilic kho aluminium ntawv ci rau HVAC fins yog ib qho kev ua haujlwm, tsis tau muaj pov thawj cov khoom lag luam hauv khw, thaum xav tau kev dehumidification, condensate tswj, corrosion kuj thiab yooj yim ntawm fabrication ua ntej.

3003 yog ib qho zoo heev ua ke ntawm lub zog, formability thiab corrosion kuj rau fin Tshuag; cov txheej txheej hydrophilic uas tau teev tseg rau daim ntawv thov txo qis kev sib cuag lub kaum sab xis (cov kab sib txuas uas tau tshaj tawm yog kwv yees li 35℃vs . 85℃uncoated), txhim kho cov dej condensate thiab mitigates droplet nqa- dhau thiab huab cua- sab siab poob hauv ntau hom kev tswj hwm.

Txawm li cas los xij, kev xaiv cov txheej txheem, kev tswj cov txheej txheem (tshwj xeeb yog kev tiv thaiv cov npoo thiab tau txais kev ua kom zoo) thiab kev sim ib puag ncig (ntsev- qias neeg thiab/lossis SO₂- ib puag ncig nplua nuj) yog qhov tseem ceeb kom paub txog qhov ua tau zoo kawg.

FAQs

Q1: Dab tsi yog qhov txiaj ntsig tseem ceeb ntawm hydrophilic txheej ntawm HVAC fins?

A1: Qhov txiaj ntsig tsuas yog kev tswj hwm noo noo zoo dua. Nws ua rau cov dej condensed nthuav tawm hauv cov yeeb yaj kiab nyias thiab ua kom cov yeeb yaj kiab tawm zoo yam tsis muaj dej, tsis txhob hla dej ntawm cov fins uas cuam tshuam cov huab cua ntws thiab cov cua sov hloov mus. "

Q2: Dab tsi yog qhov cuam tshuam ntawm 3003 aluminium alloy ntawm kev ua haujlwm fin?

A2: 3003 aluminium alloy excels siab thermal conductivity ntxiv rau lub teeb yuag thiab muaj qhov zoo formability thiab corrosion kuj, ua rau nws yog ib qho kev xaiv zoo tshaj plaws raws li cov khoom siv ntawm cov cua kub exchanger fins.

Q3: Puas yog cov txheej txheej hydrophilic puas cuam tshuam rau qhov kub hloov pauv ntawm txhuas?

A3: Cov txheej txheej hydrophilic yog nyias heev (feem ntau 1-5 micron) thiab tsis muaj qhov cuam tshuam tseem ceeb ntawm kev hloov pauv hluav taws xob ntawm txhuas. Qhov tseeb, tag nrho cov kev sib pauv cua sov yog txhim kho los ntawm kev tiv thaiv kev sib txuas ntawm cov dej.

Q4: Puas yog nws muaj peev xwm ua tau rau hydrophilic coated fins los tiv thaiv pwm los ntawm kev loj hlob tiav?

A4: Txawm hais tias tsis muaj qhov chaw tuaj yeem lav 100% poof ntawm microbial kev loj hlob nyob rau hauv tag nrho cov xwm txheej, hydrophilic fins muaj pov thawj los txo cov pwm thiab cov kab mob loj hlob los ntawm kev tshem tawm cov khoom tsim ntawm cov dej tsis tu ncua, ib qho ntawm cov xwm txheej tseem ceeb rau lawv cov kev loj hlob.

Q5: Puas yog Hydrophilic coated Fins muaj tus nqi siab dua li ntawm cov fins dawb?

A5: Thaum pib, tus nqi ntawm 3003 hydrophilic coated aluminium ntawv ci yog siab dua li cov ntawv txhuas liab qab. Txawm li cas los xij, tus nqi pib siab dua yog offset raws sij hawm los ntawm kev txuag hluav taws xob, lub neej ntev ntawm cov cuab yeej siv thiab cov nqi kho tsawg dua uas ua rau nws raug nqi ntau dua hauv lub neej voj voog ntawm HVAC system.
